MCD series

(Ultimate Miniature Coaxial Interconnect; 1.55mm Mated Height)
Fully compatible with Hirose W.FL series, 100% Equivalent.

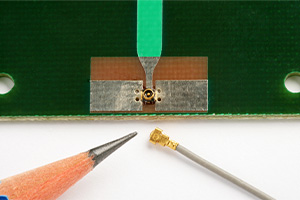

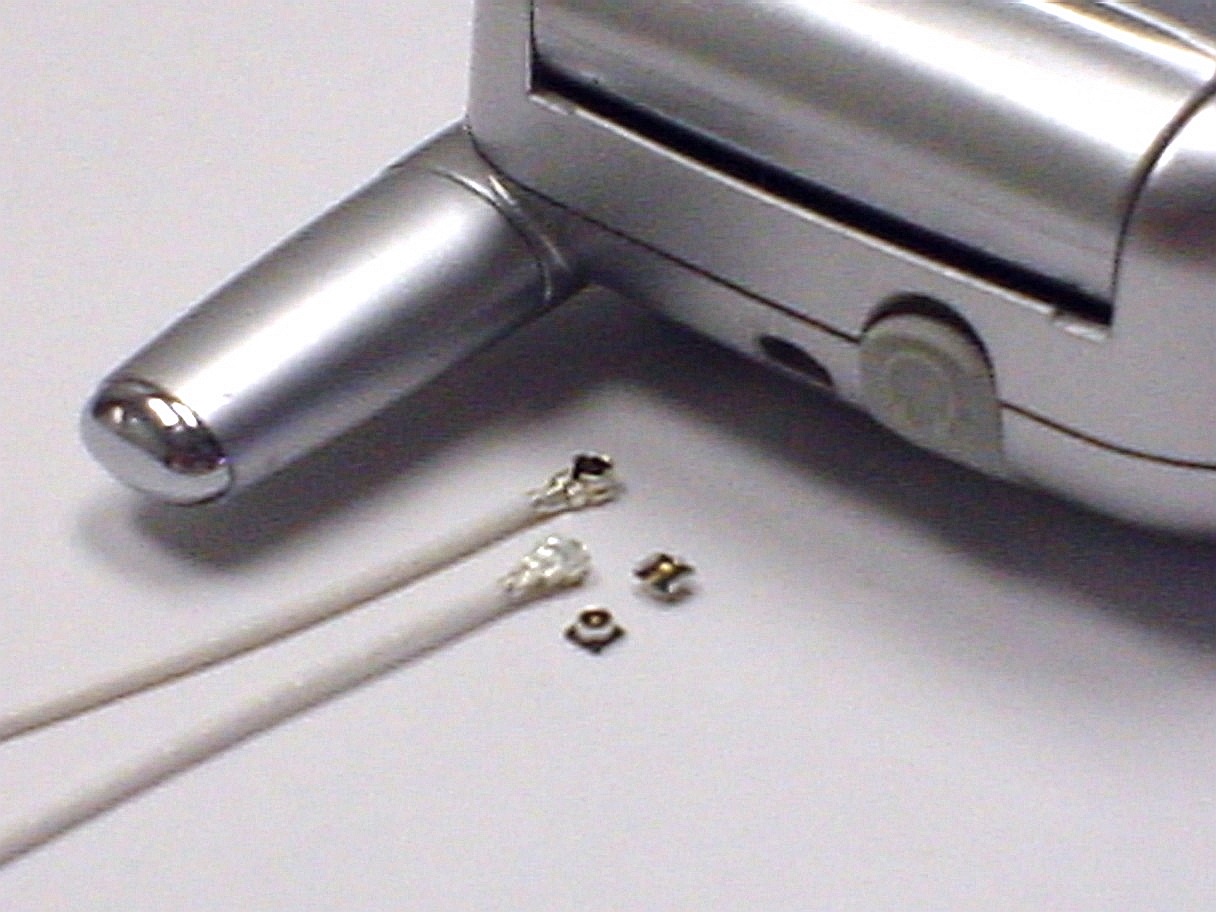

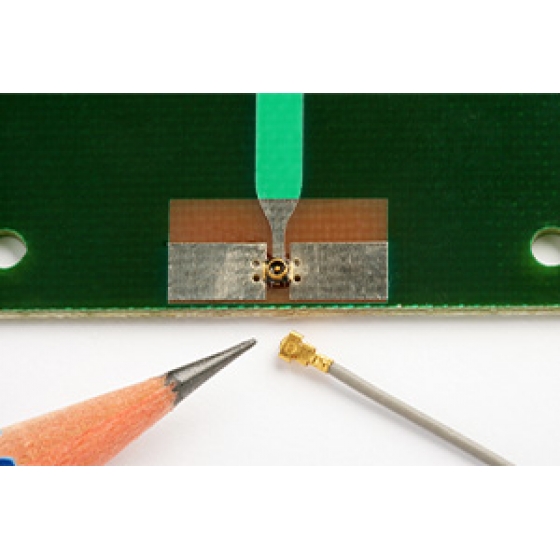

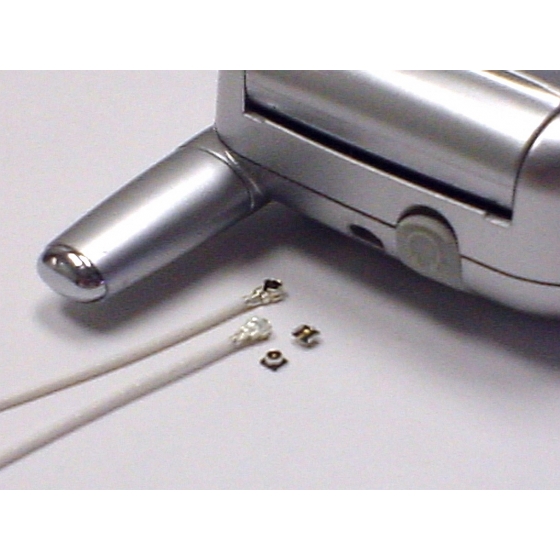

Sunridge MCD series coaxial product fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed in supreme Teflon coax cable and advanced mechanical design, MCD delivers high electrical performance of a typical 1.3 max VSWR at 6.0GHz, while providing for a sturdy interconnection in a slim form factor of 2.0mm x 2.0mm footprint by 1.55mm mated height, the smallest coax interconnection device known today. 　

Product Spec

Product details

Space Economy: 2.0mm x 2.0mm PCB footprint, mated height of 1.55mm.
Teflon Cable: Silver plated center conductor with Teflon dielectric and jacket of 0.81mm or 0.91mm OD to make for intricate cable routing in a extremely limited space.
PCB connector: Integral molded construction ensures product reliability.
Sturdy Connection: Lead-in and interlock features among mating pair ensure solid coupling.
Accessory: Extraction tool for easy replacement, and MCD-SMA adapter for tester fitting.
