MCF series

Home
MCF series

MCF series

(Miniature Coaxial Interconnect, 2.0mm Mated Height)
Fully Compatible with Murata GSC series; 100% Equivalent
Murata discontinues GSC series MM9329**/MXTK** ==> Sunridge continues to supply MCF series (with multiple cable options) as drop-in replacement to GSC.
Sunridge MCF series coaxial product fulfills the rigorous requirements of high frequency RF signal transmission in digital world. In a miniature form factor of 3.0mm x 3.0mm PCB foot print by 2.0mm mated height, MCF features an advanced design that makes for optimal mechanical application, i.e., easy insertion and sturdy engagement among mating pair, and delivers a supreme performance of low insertion loss and low VSWR at 50 OHM impedance over a working frequency range from DC to 6.0 GHz. MCF offers a practical and reliable solution for interconnection from board to board or from board to panel.

Product Spec

Product details

Space Economy: 3.0mm x 3.0mm footprint with 2.0mm mated height

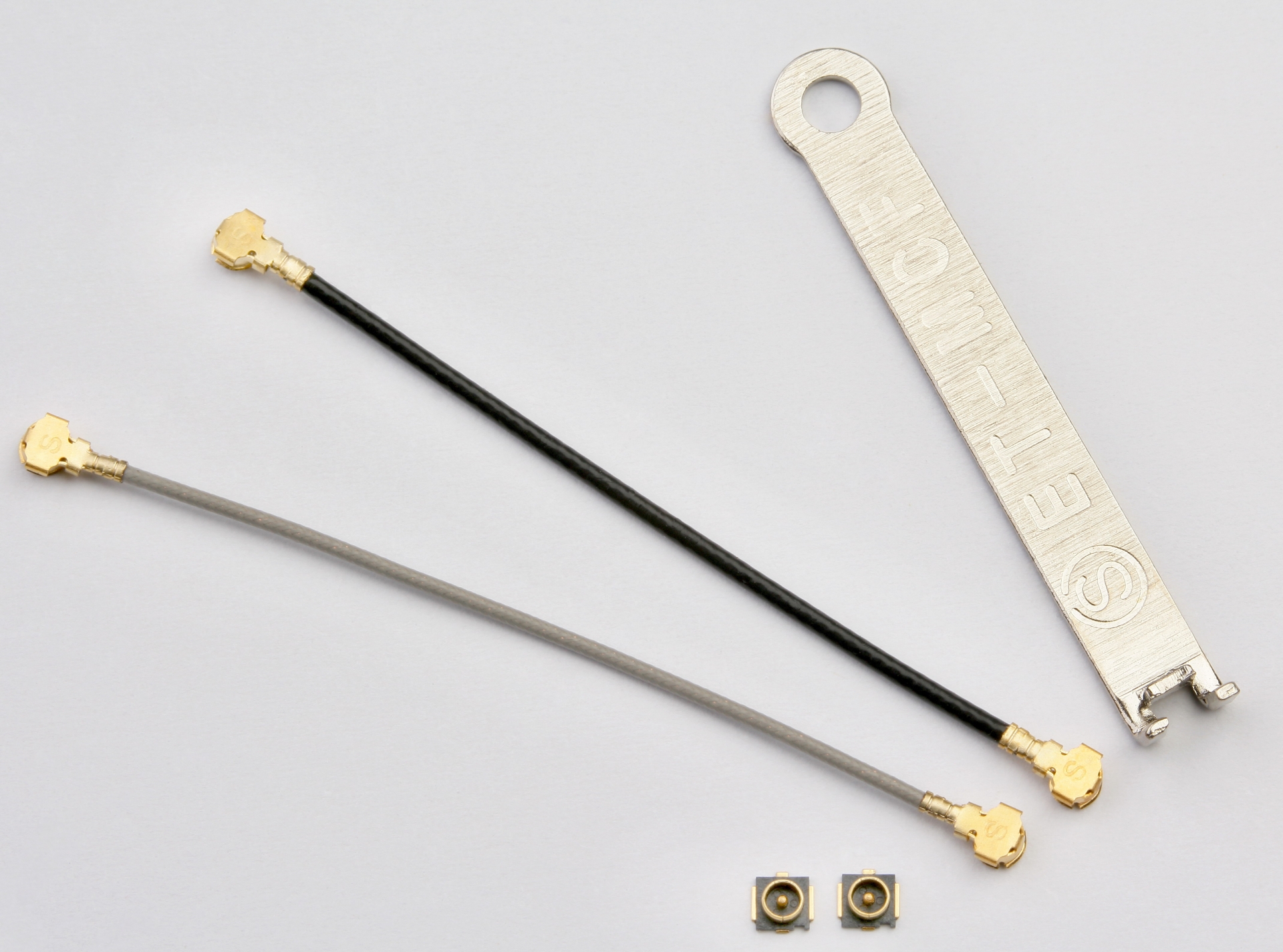

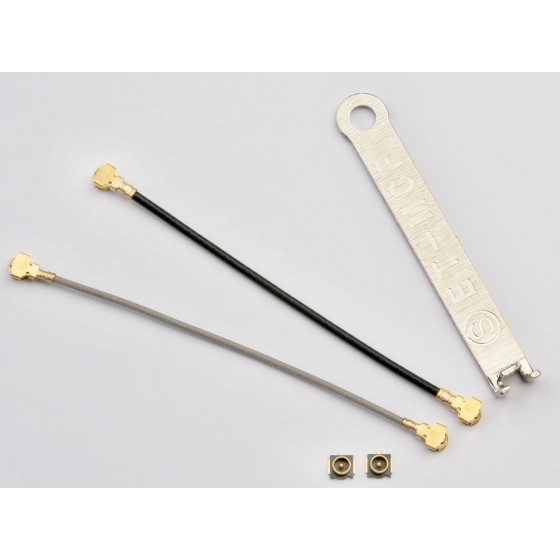

Cable Connector: durable cable crimp and sturdy mating with PCB socket
Teflon Cable: three options offered --
#68 cable of 0.81mm OD - for flexibility;
#62 of 0.91mm OD for low insertion-loss and flexibility;
#59 of 1.13mm OD.- for low insertion-loss and robust structure.

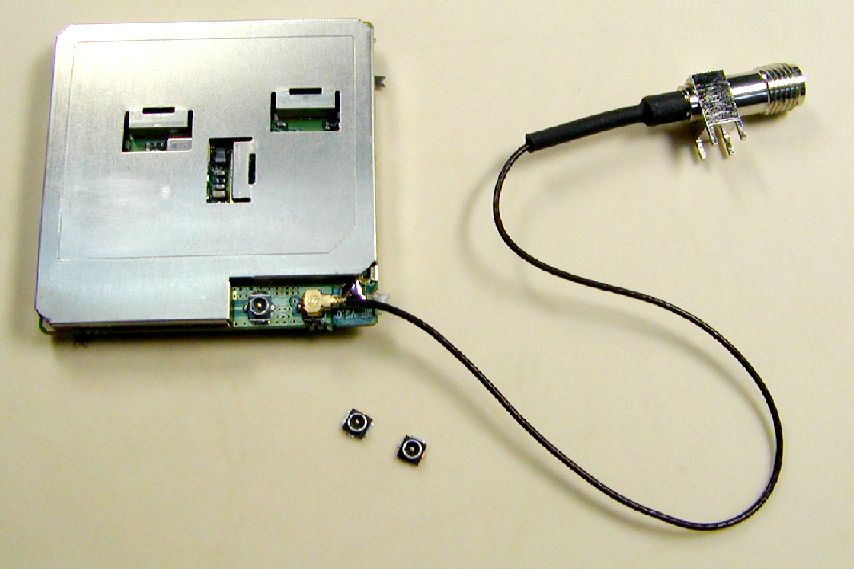

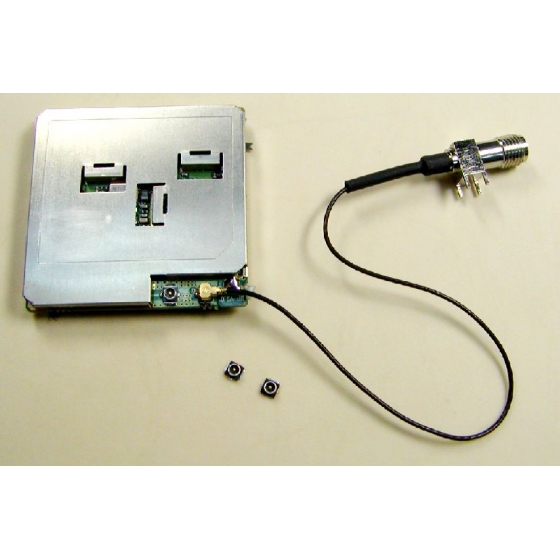

Versatility: Custom design for virtually any MCF-to-RF cable assembly.
PCB socket: Molded-in construction. High temp plastic for IR reflow.
Strength: Lead-in and interlock features make for easy insertion and sturdy mating.
Accessory: Assembly tool to guide insertion and extraction. MCF-SMA adapter for connection to network analyzer.
