MCH series

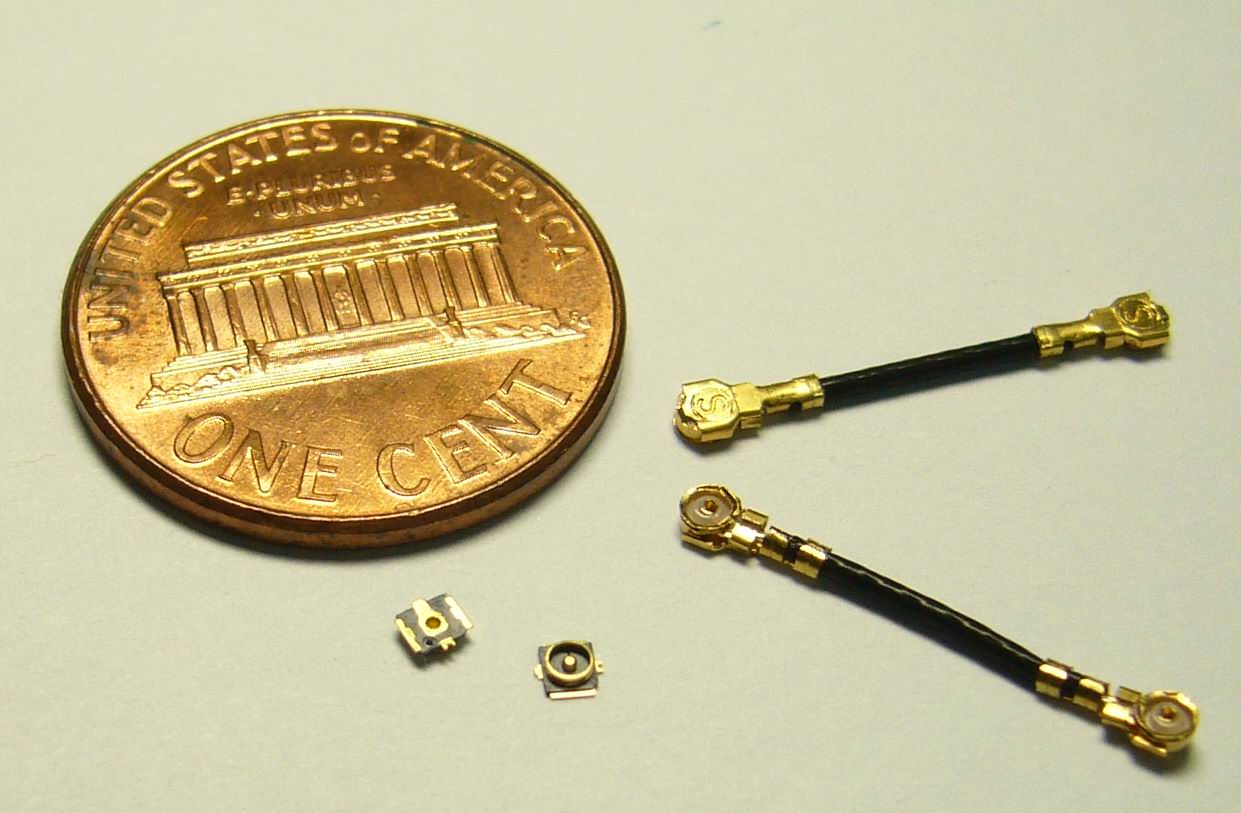

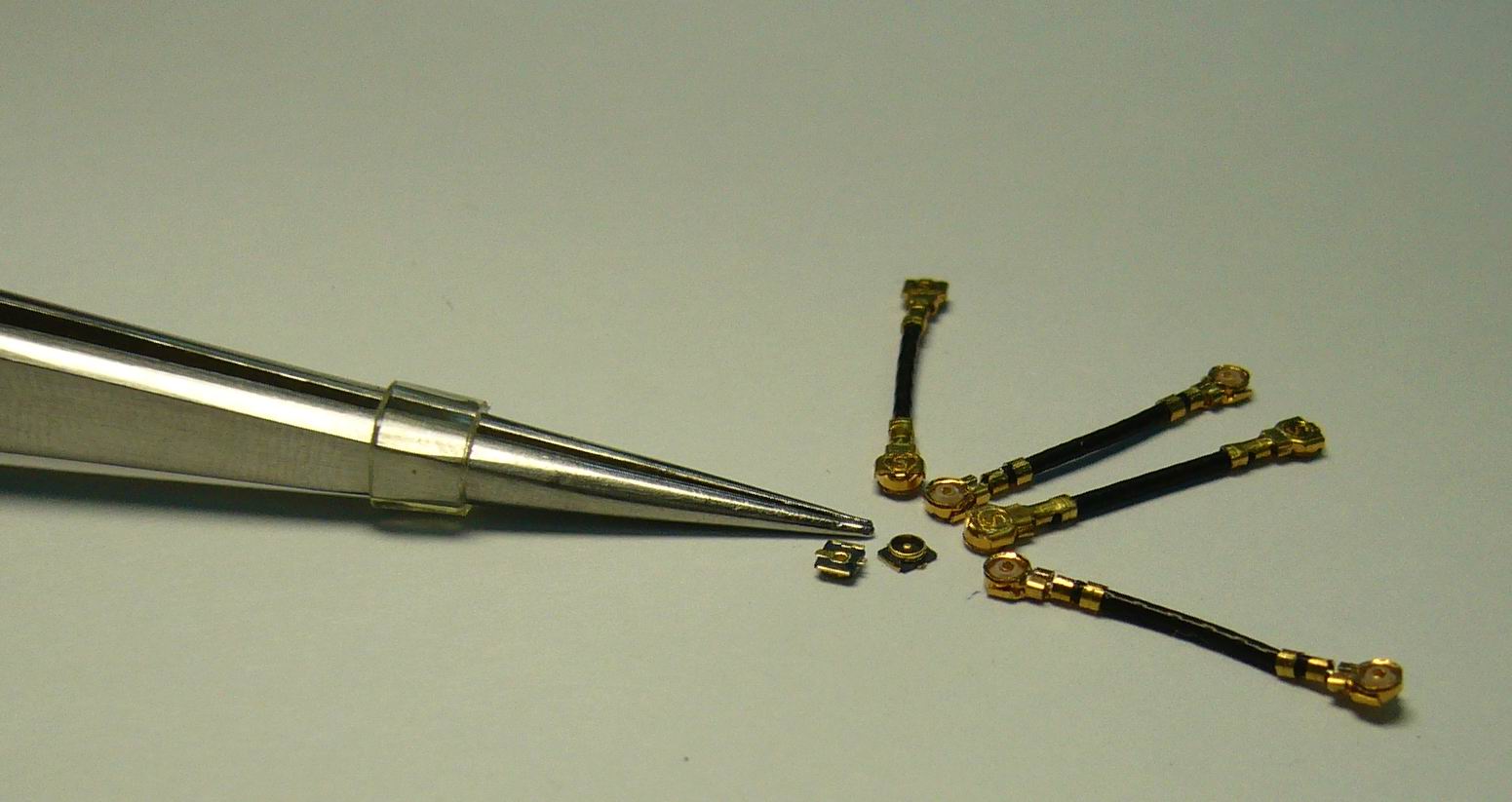

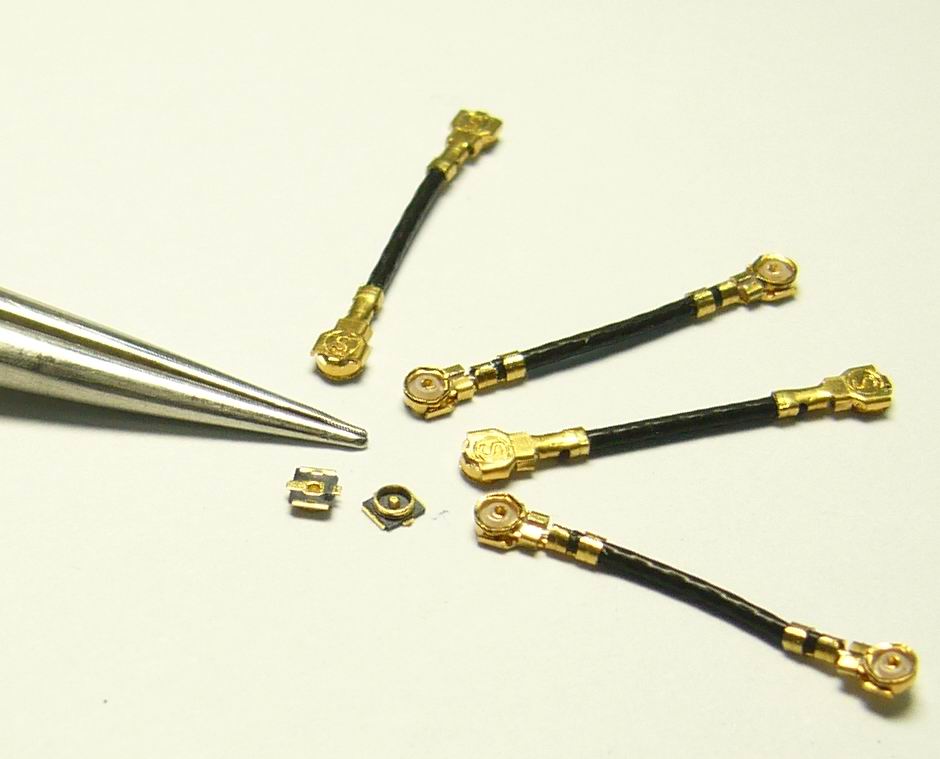

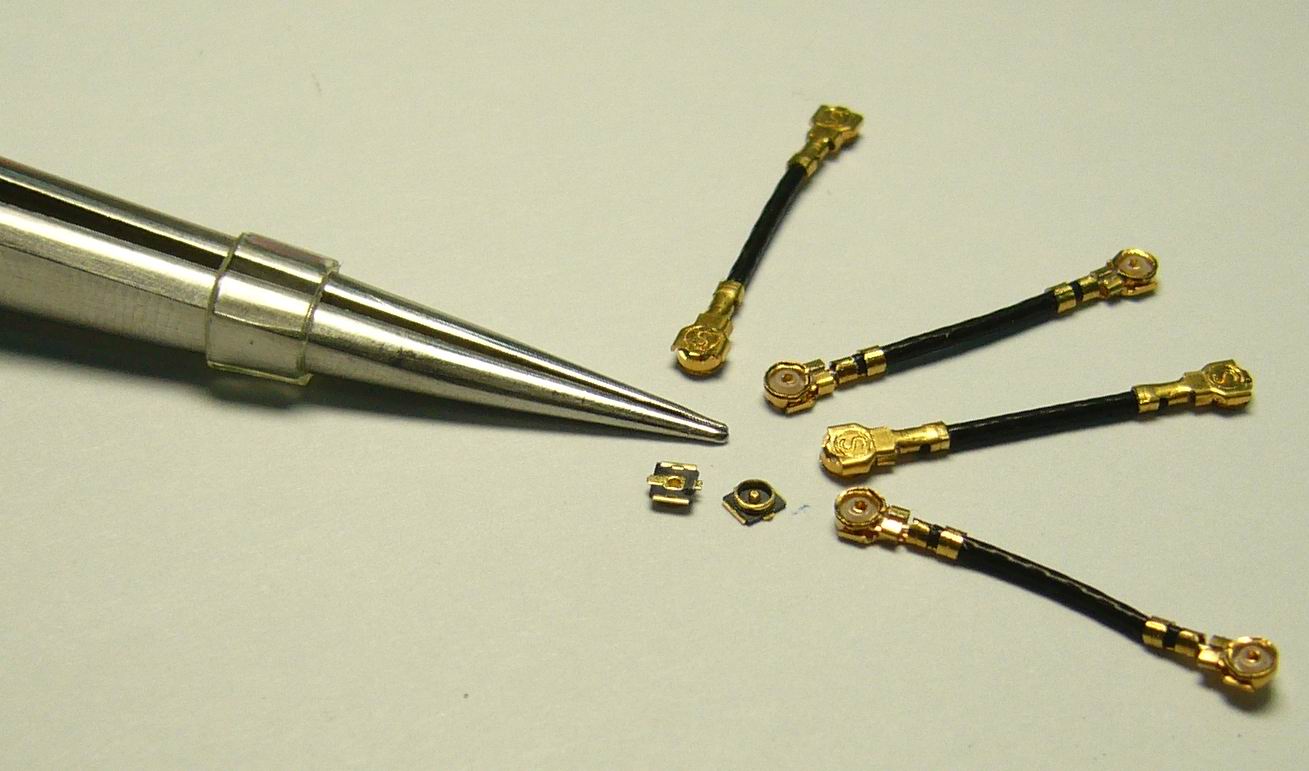

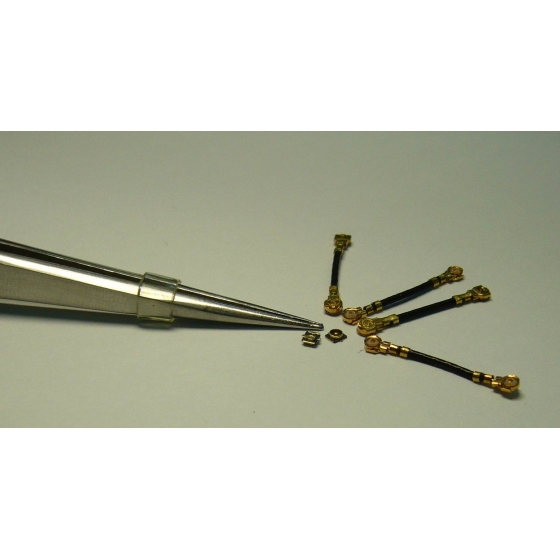

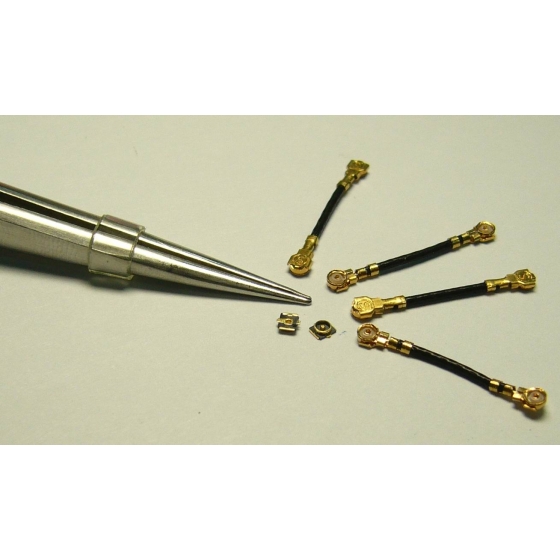

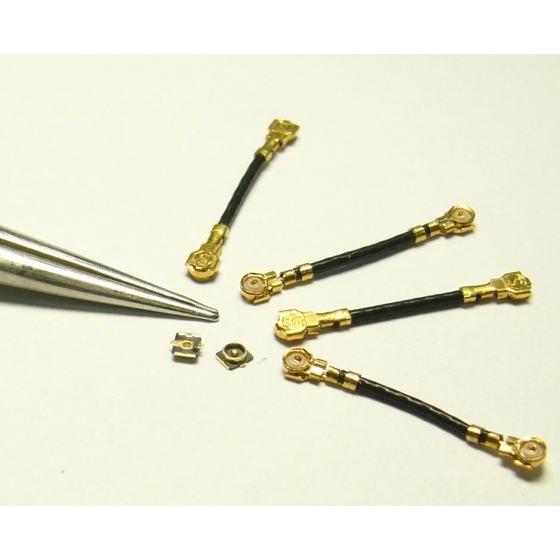

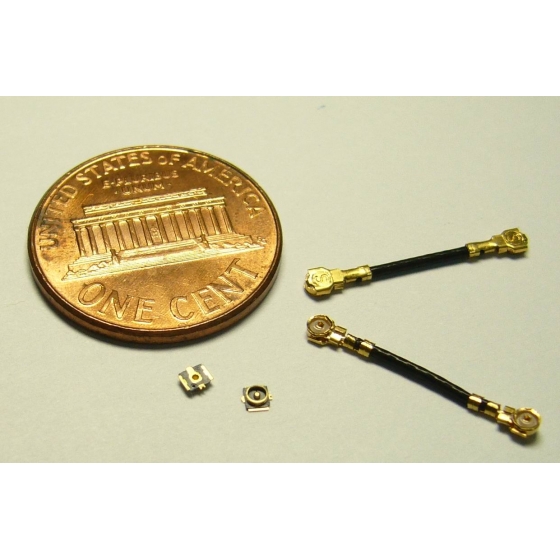

(Miniature Coaxial Interconnect, 1.2mm Mated Height)
Fully Compatible with Murata HSC series, and I-PEX (IPEX, IPX) MHF4, 100% Equivalent
Sunridge MCH series coaxial product fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed with advanced mechanical-components and supreme-grade Teflon coax cable, MCH delivers high electrical performance of typical 1.3 max V.S.W.R. at 6.0 GHz, while providing for a sturdy interconnection engagement in a slim form factor of 2.0mm x 2.0mm footprint by 1.2mm mated height.

Product Spec

Product details

Space Economy: 2.0mm x 2.0mm PCB footprint, mated height of 1.2 mm
Teflon Cables: Silver plated center conductor, Teflon dielectric and jacket
PCB socket: Integral molded construction ensures product reliability.
Sturdy connection: Lead-in and interlock features among mating pair ensure solid coupling.
Accessory: Insertion/Extraction tool, test adapters for connection to MCH cable head and PCB connector.
