MCC series

Home
MCC series

MCC series

(6GHz RF Switch Connector)
Fully Compatible with Murata SWD series, 100% Equivalent.
Sunridge MCC RF switch connector addresses the increasing industrial demand where an efficient, accurate and reliable method for antenna verification on board is a must. Typical of Sunridge MC (Miniature Coaxial) RF interconnect family which consists of MCA, MCB, MCC aboard and MCD series; MCC features smaller form factor, light weight and performance up to 6 GHz.

Product Spec

Product details

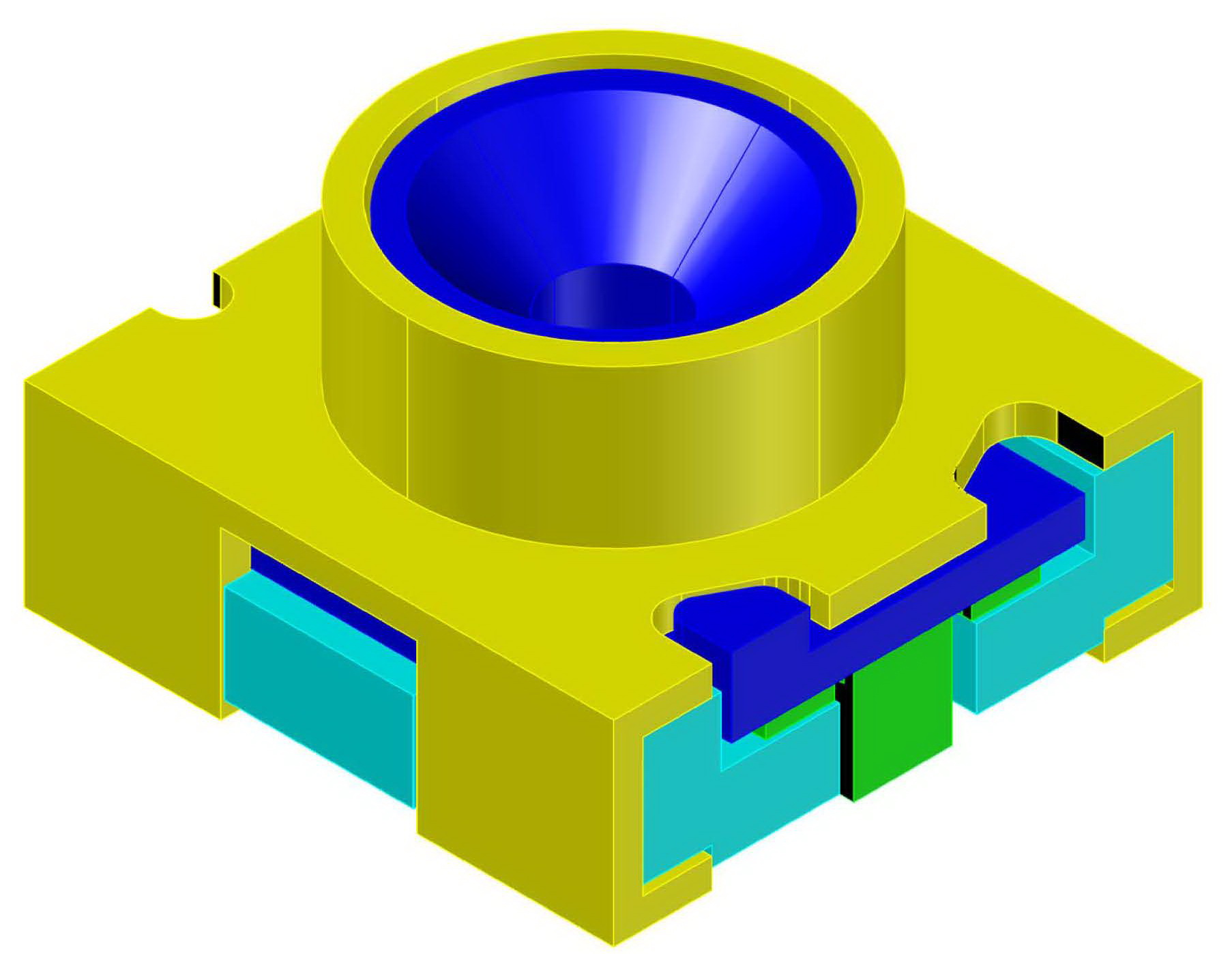

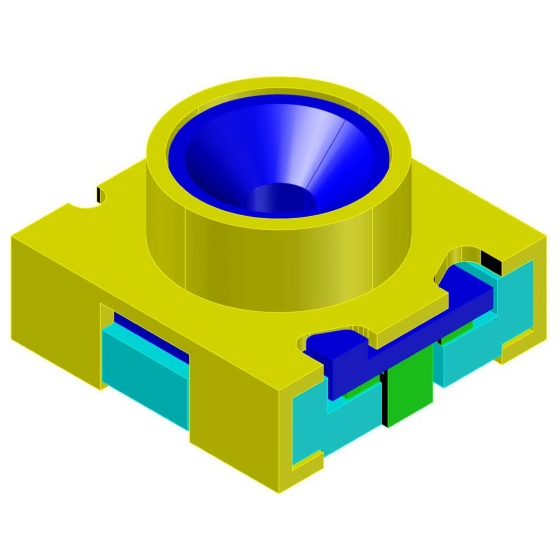

Space Economy: PCB footprint of 3.0mm x 3.0mm, x 1.8mm height

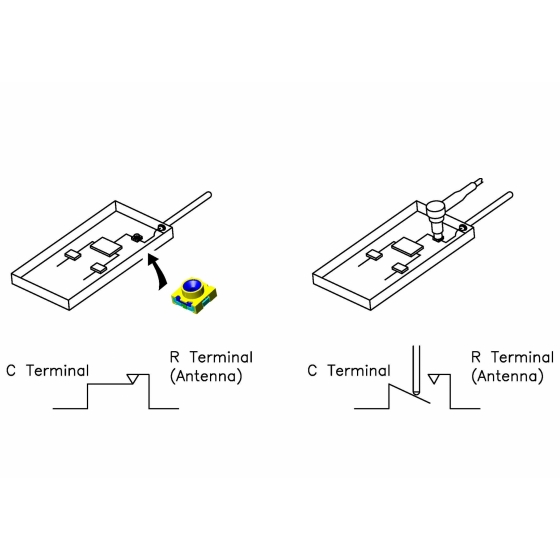

Provides a cost effective test point on production PCBA for antenna circuit performance verification.
Insertion loss: 0.2dB max, VSWR: 1.3 max, Isolation factor: 20 dB min (0 to 3 GHz); 15 dB min (3 to 6 GHz).
Notch identification for ground and input signal pads.

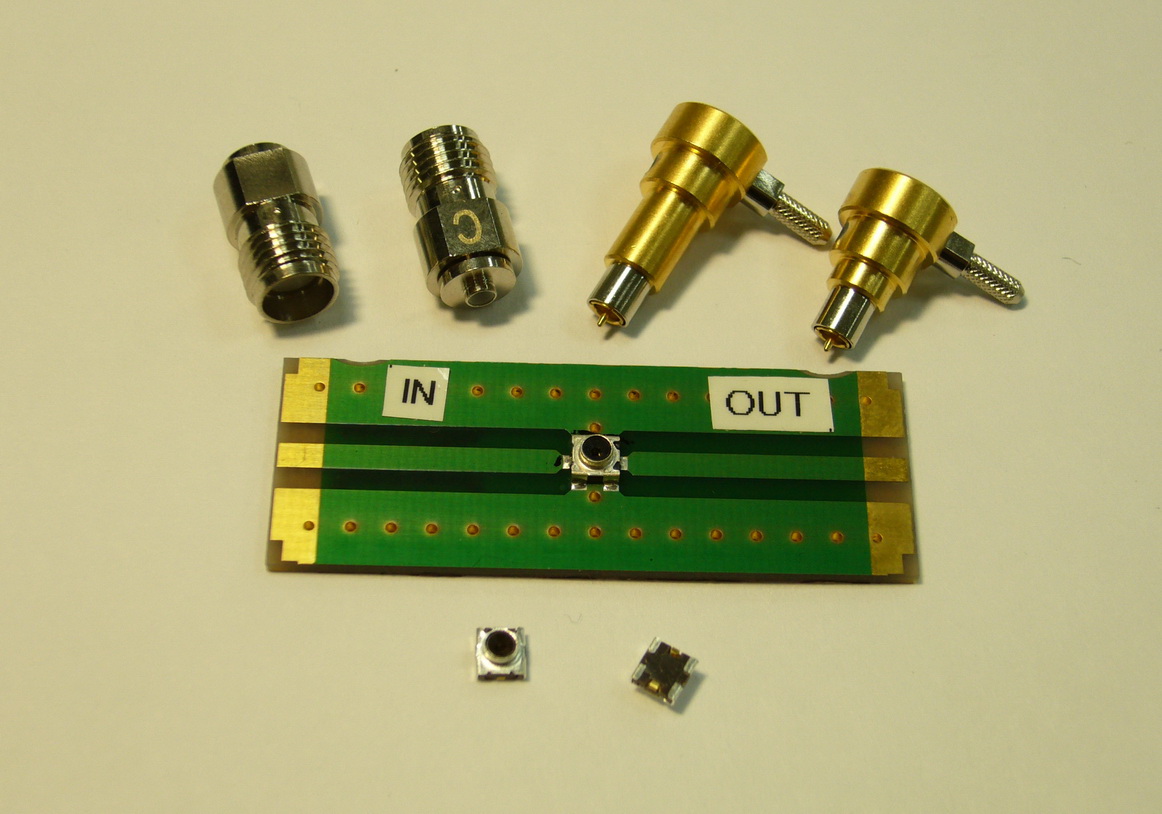

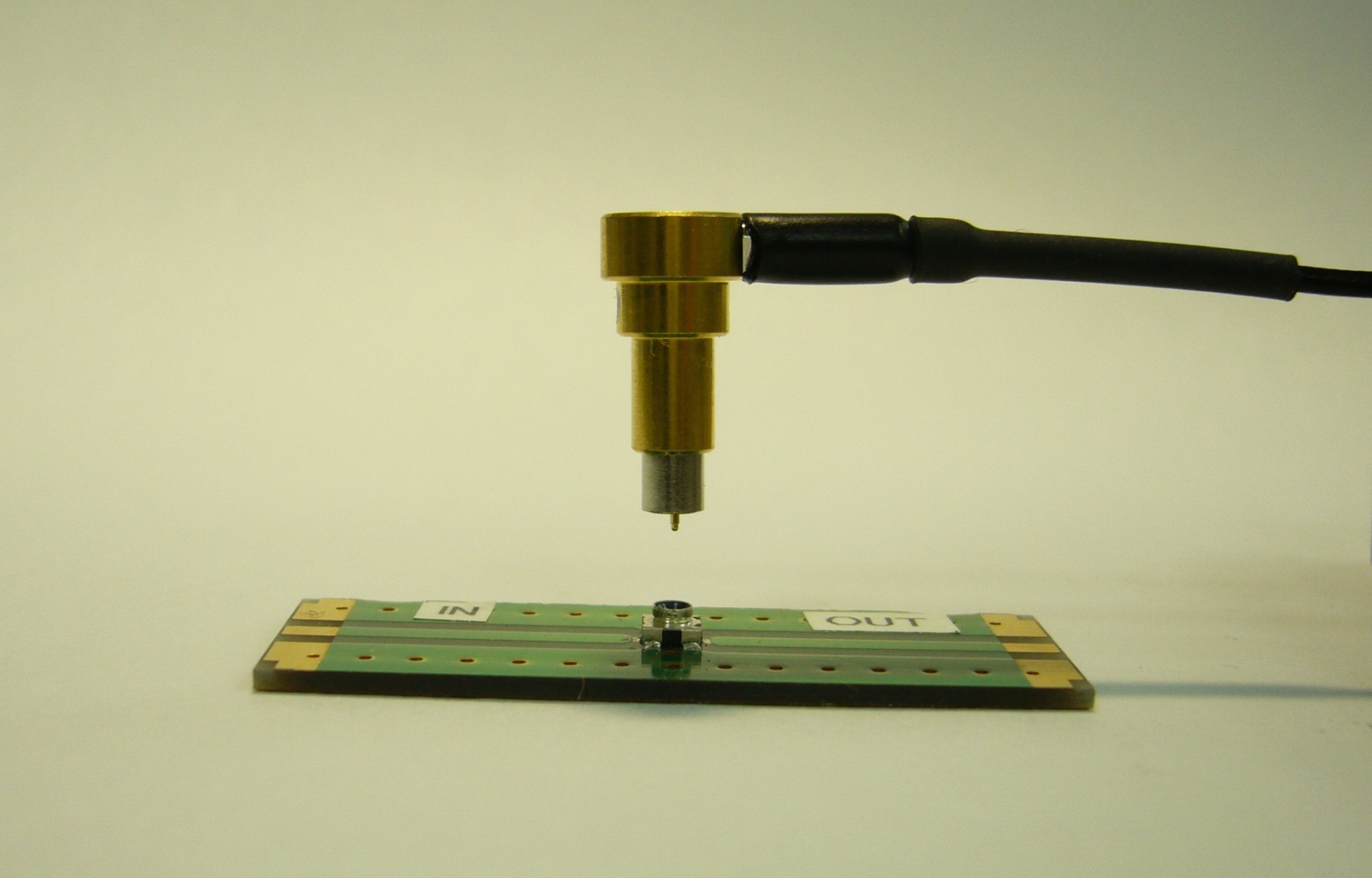

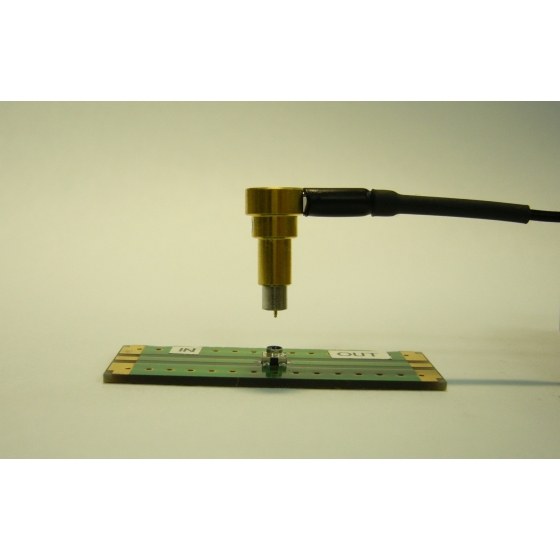

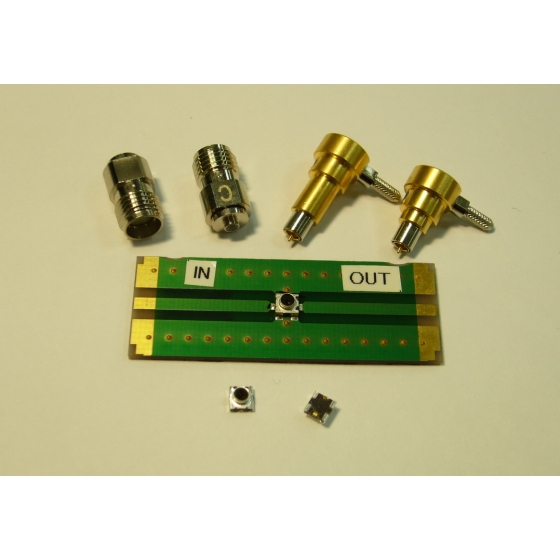

Complete offerings of test probe for production set up, and SMA adaptor for test probe calibration.
Custom engineering design solution available upon request.
