(Board to Board Coax RF Connector, Cost Effective, Reliable Solutions)
Fully Compatible with Radiall IMP board-to-board RF interconnection, 100% Equivalent.

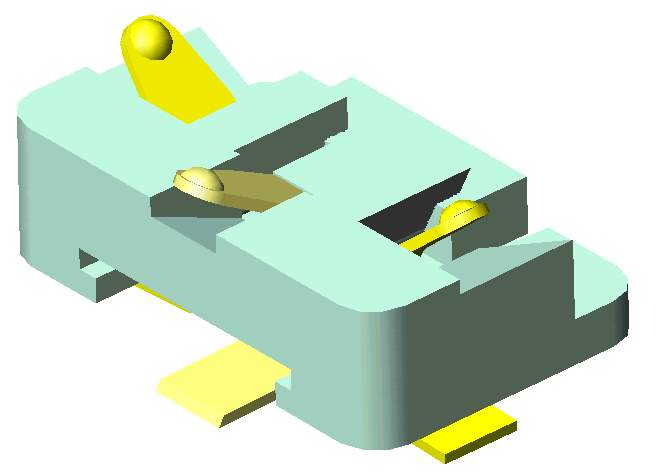

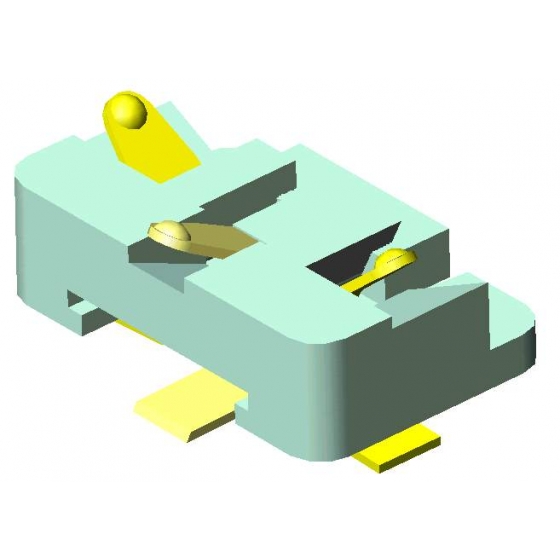

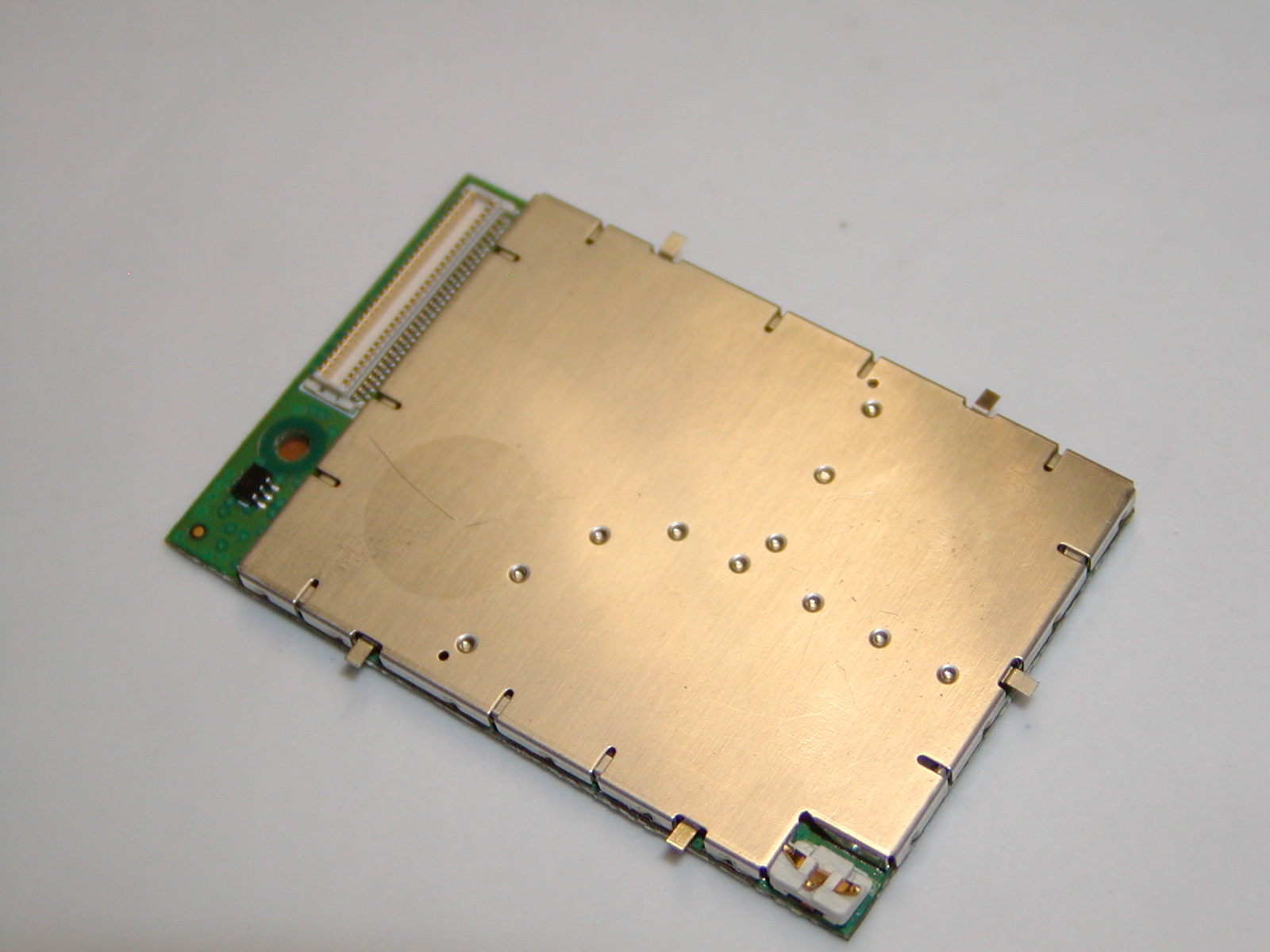

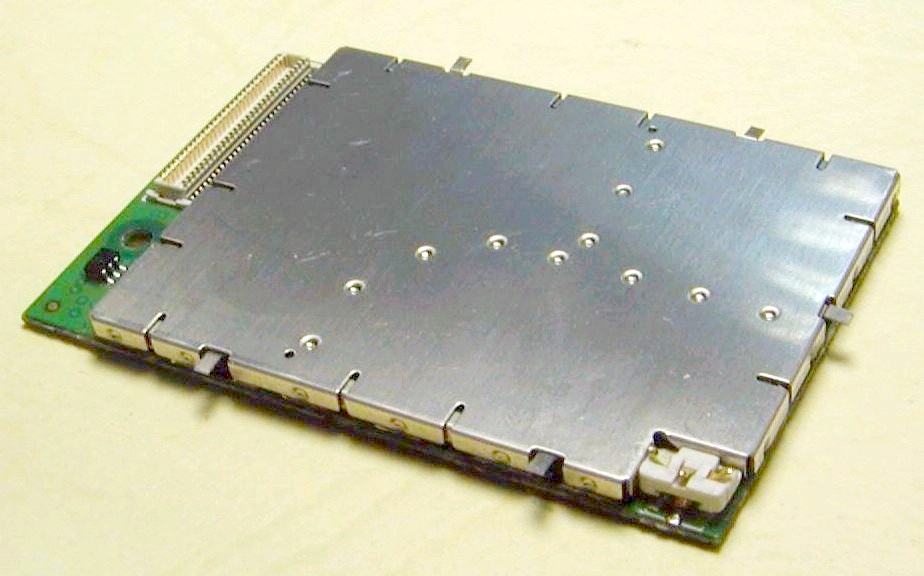

Sunridge MCE series coaxial connector offers an effective and reliable design solution for board-to-board RF signal transmission at the impedance of 50 OHM and the working frequency up to 6 GHz. It works as a mezzanine: the base section of the contact solders firmly to floor-board and the cantilever section makes solid contact to ceiling-board by spring load. MCE is ideal for OEM project where a module is to be integrated with the host board in production volume.

For 2.0mm stacking height, with add-on protection shield
MCE-20B-G01 Product Spec

For 2.0mm stacking height, no shield for hand-solder tryout
MCE-20B-G01 Product Spec

For 1.5mm stacking height, with build-in protection wall
MCE-15A-G01 Product Spec

Product details

- For 2.0mm stacking height, with add-on protection shield MCE-20B-G01 Product Spec
- For 2.0mm stacking height, no shield for hand-solder tryout MCE-20B-G01 Product Spec
- For 1.5mm stacking height, with build-in protection wall MCE-15A-G01 Product Spec
Application: for 50 OHM, up to 6 GHz Space Economy: 3.2mm x 4.6mm foot print Stacking Height: 2.0mm or 1.5mm versions available. Integral contact-insulator structure: optimal spring force for sturdy compression contact. Protection shield: to minimize the exposure - and handling-induced damage - of spring contact, and to prevent it from overstrain by excess weight or push down.
