U.FL cable assembly

With near 30 years of experience, Sunridge Corporation provides a comprehensive range of external and embedded electronic connectors, cable and wire harness assemblies, electric switches, U.FL cable assembly and elector-mechanical components in general. With a wide range, good quality, reasonable prices and stylish designs, our U.FL cable assembly products are extensively used in Electronic machinery and other industries. Sunridge Corporation's longtime standing as a trusted supplier can be best accredited to its belief in "three pillars" of success in enterprises: technology strength, operational efficiency, and customer intimacy. This conviction has fueled the company's growth in the past and at present, and will do so even more fervently in the future. Our company has friendly corporate friendship with famous international U.FL cable assembly suppliers, and Sunridge Corporation is an agent for all kinds of famous connectors with timely service and competitive price. If you have any inquiries for the brand U.FL cable assembly，please send us an enquiry then our sales team will reply to you in a short time!

Sunridge Corp specializes in Coaxial cable assembly with any cable and connector types. Besides generic RF/Coaxial connectors in general, Sunridge MC series offers a comprehensive line of coaxial interconnection products in miniature form factor that feature sturdy mechanical-coupling characteristics, flexible cable routing, and reliable signal/electrical performance. MC design is field-proven. Among many versatile applications, MC cable assemblies can be used inside the enclosure - for directly soldering to the PCB or for board-to-board connection; they can also be system-integrated as a solid signal-transmission line from module or host PCB to a RF connector to be mounted on enclosure panel as its RF interface port.

Sunridge currently covers seven MC product lines - from MCA to MCH - each optimally designed for a specific category of applications. For design-in assistance or technical forum of Sunridge coaxial cable assembly, please contact us.

PRODUCTS

MCA series

(Coaxial Interconnect System)
Fully Compatible with Murata FSC series, 100% Equivalent.

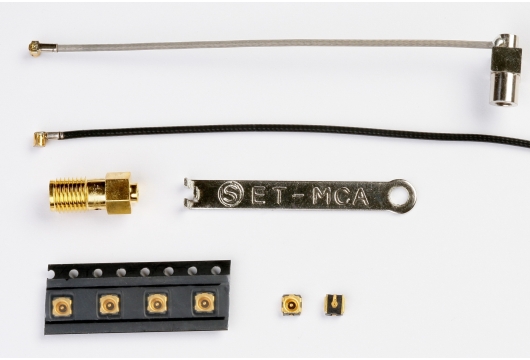

Sunridge MCA series coaxial product fulfills the critical requirements of high frequency data transmission commonplace in digital world. Constructed with ultra-thin Teflon wire of supreme grade and interconnect mechanism of rigid structure, MCA series meets high performance benchmark: VSWR response of 1.2 Max from DC to 2GHz, or 1.3 Max from 2GHz to 3GHz. Slim form factor - a PCB footprint of 3.5 mm square and a mated profile of 3.1mm - enables design compactness demanded by today’s feature rich hand held devices.

Product Spec

MCB series

(Ultra Miniature Coaxial Interconnect System; 2.5mm or 2.0mm Mated Height)
Fully compatible with Hirose U.FL and I-PEX MHF series, 100% Equivalent.

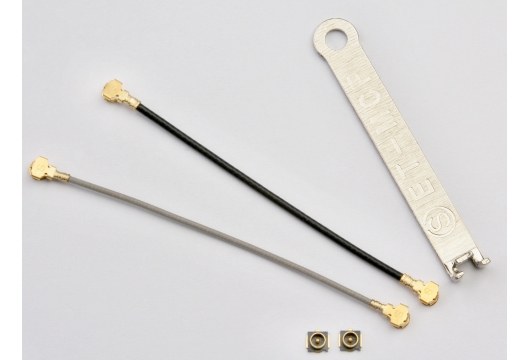

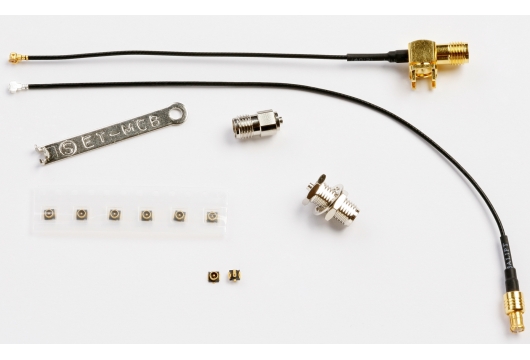

Sunridge MCB series coaxial product fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed in supreme Teflon coax cable and advanced mechanical design, MCB delivers high electrical performance of a typical 1.3 max VSWR measurement at 6.0GHz, while providing for a sturdy interconnection in a slim form factor of 3.0mm square footprint by 2.5mm max mated height. For tight spaced application, MCB2 plug offers an ultra low-mated profile of 2.0mm on the same MCB socket.　

Product Spec

MCBP-SMAJB Adapter (A MCB application for SMA-bulkhead panel mount in compact space) Application Note

MCBP_SMAJB_Adapter ← download

MCC series

(6GHz RF Switch Connector)
Fully Compatible with Murata SWD series, 100% Equivalent.
Sunridge MCC RF switch connector addresses the increasing industrial demand where an efficient, accurate and reliable method for antenna verification on board is a must. Typical of Sunridge MC (Miniature Coaxial) RF interconnect family which consists of MCA, MCB, MCC aboard and MCD series; MCC features smaller form factor, light weight and performance up to 6 GHz.

Product Spec

MCD series

(Ultimate Miniature Coaxial Interconnect; 1.55mm Mated Height)
Fully compatible with Hirose W.FL series, 100% Equivalent.

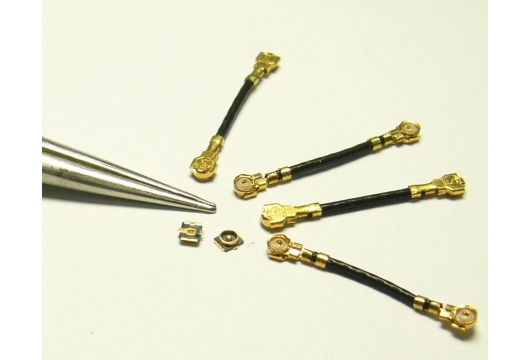

Sunridge MCD series coaxial product fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed in supreme Teflon coax cable and advanced mechanical design, MCD delivers high electrical performance of a typical 1.3 max VSWR at 6.0GHz, while providing for a sturdy interconnection in a slim form factor of 2.0mm x 2.0mm footprint by 1.55mm mated height, the smallest coax interconnection device known today. 　

Product Spec

MCE series

(Board to Board Coax RF Connector, Cost Effective, Reliable Solutions)
Fully Compatible with Radiall IMP board-to-board RF interconnection, 100% Equivalent.
Sunridge MCE series coaxial connector offers an effective and reliable design solution for board-to-board RF signal transmission at the impedance of 50 OHM and the working frequency up to 6 GHz. It works as a mezzanine: the base section of the contact solders firmly to floor-board and the cantilever section makes solid contact to ceiling-board by spring load. MCE is ideal for OEM project where a module is to be integrated with the host board in production volume.

For 2.0mm stacking height, with add-on protection shield
MCE-20B-G01 Product Spec

For 2.0mm stacking height, no shield for hand-solder tryout
MCE-20B-G01 Product Spec

For 1.5mm stacking height, with build-in protection wall
MCE-15A-G01 Product Spec

MCF series

(Miniature Coaxial Interconnect, 2.0mm Mated Height)
Fully Compatible with Murata GSC series; 100% Equivalent
Murata discontinues GSC series MM9329**/MXTK** ==> Sunridge continues to supply MCF series (with multiple cable options) as drop-in replacement to GSC.
Sunridge MCF series coaxial product fulfills the rigorous requirements of high frequency RF signal transmission in digital world. In a miniature form factor of 3.0mm x 3.0mm PCB foot print by 2.0mm mated height, MCF features an advanced design that makes for optimal mechanical application, i.e., easy insertion and sturdy engagement among mating pair, and delivers a supreme performance of low insertion loss and low VSWR at 50 OHM impedance over a working frequency range from DC to 6.0 GHz. MCF offers a practical and reliable solution for interconnection from board to board or from board to panel.

Product Spec

MCG series

Miniature Coaxial Interconnect, 3.0mm Mated Height for Robust Use
Fully Compatible with Hirose H.FL series; 100% Equivalent
Sunridge MCG series coaxial product fulfills the rigorous demands of both highly reliable RF signal transmission and rugged usage as required in mobile or on-vehicle wireless IT devices. In a small form factor of 4.5mm x 5.0mm footprint and 3.0mm mated height, and designed for 50 Ohm impedance over a working frequency range from DC to 6.0 GHz, MCG features a supreme performance of low insertion loss and a VSWR below 1.20 (at 1575 MHz GPS frequency) and it provides for a sturdy retention force of 1.5Kg. MCG offers a reliable, cost-effective solution for board to board or board to panel integration.

Product Spec

MCH series

(Miniature Coaxial Interconnect, 1.2mm Mated Height)
Fully Compatible with Murata HSC series, and I-PEX (IPEX, IPX) MHF4, 100% Equivalent
Sunridge MCH series coaxial product fulfills the rigorous requirements of high frequency data transmission in digital world. Constructed with advanced mechanical-components and supreme-grade Teflon coax cable, MCH delivers high electrical performance of typical 1.3 max V.S.W.R. at 6.0 GHz, while providing for a sturdy interconnection engagement in a slim form factor of 2.0mm x 2.0mm footprint by 1.2mm mated height.

Product Spec

TP series

Test Measurement Probe Cable Assembly for RF Switch Connector
Fully Compatible with Murata SWD MM8430-2610 SWF MM8130-2610 SWG MM8030-2610 series, Hirose MS-180 series, 100% Equivalent. Cross Reference - Murata MXHS83QE3000 MXHQ87WA3000 ; Hirose MS-180-040LP-H3 MS-180-088LP-H1

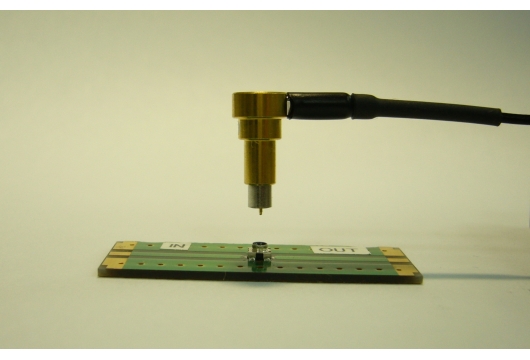

To meet the rigorous reliability demanded by smartphones and mobile IT devices, a RF switch is typically installed on the main PCB as a contact port for assurance testing. Driven by economy of scale and standardization, only a handful of de facto brands occupy 95%+ of the market share of the RF switch: Murata SWD/SWF series, Murata SWG series, Hirose MS-180 series. As this RF-antenna circuit test becomes a must for production and field service, the demand calls for a test probe device (usually in cable assembly form) that is reliable, durable and easy to use. Sunridge TP series offers a complete line of "Test Probe to SMA" cable to fulfill this requirement.

Product Spec
